Composite Drainage Net

Excellent Drainage Net Manufacturers

Geocomposite drainage net is an innovative and highly effective solution for managing water in various applications. Whether you are dealing with surface water or groundwater. Or a combination of both, a composite drainage net can help you effectively manage water and prevent water-related problems.

Geocomposite drainage nets are an excellent solution for managing water and preventing water-related problems. If you are in need of a solution for managing water, consider using geocomposite drainage nets. As one of the renowned drainage net manufacturers, you would not be disappointed in us. We also offer and sell the best-selling bentonite waterproof blanket.

Durable Geocomposite Drainage Net

Being among the reputable drainage net manufacturers, our geocomposite drainage net is versatile. You can use it in a wide range of applications, including construction, landscaping, and agriculture. In construction, they can be used to drain water from foundations, retaining walls, and other structures. In landscaping, they can be used to prevent waterlogging and erosion, and in agriculture, they can be used to manage irrigation and drainage.

As one of the high-quality drainage net manufacturers, the next feature of our geocomposite drainage nets is their durability. They are made of high-quality materials that are resistant to punctures, tears, and other types of damage. This means they can withstand the rigors of use in a wide range of applications, making them a long-lasting and cost-effective solution. You can cut them to fit any size or shape. They require minimal maintenance, making them an ideal choice for busy professionals.

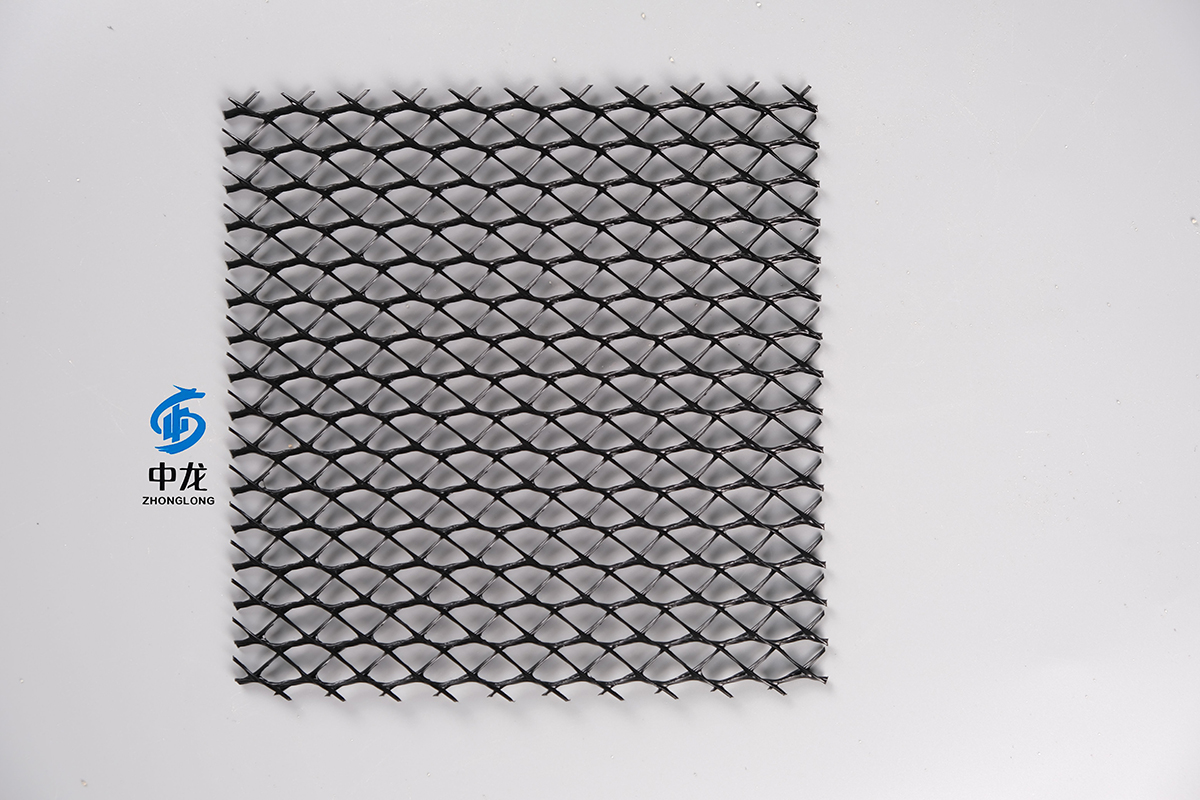

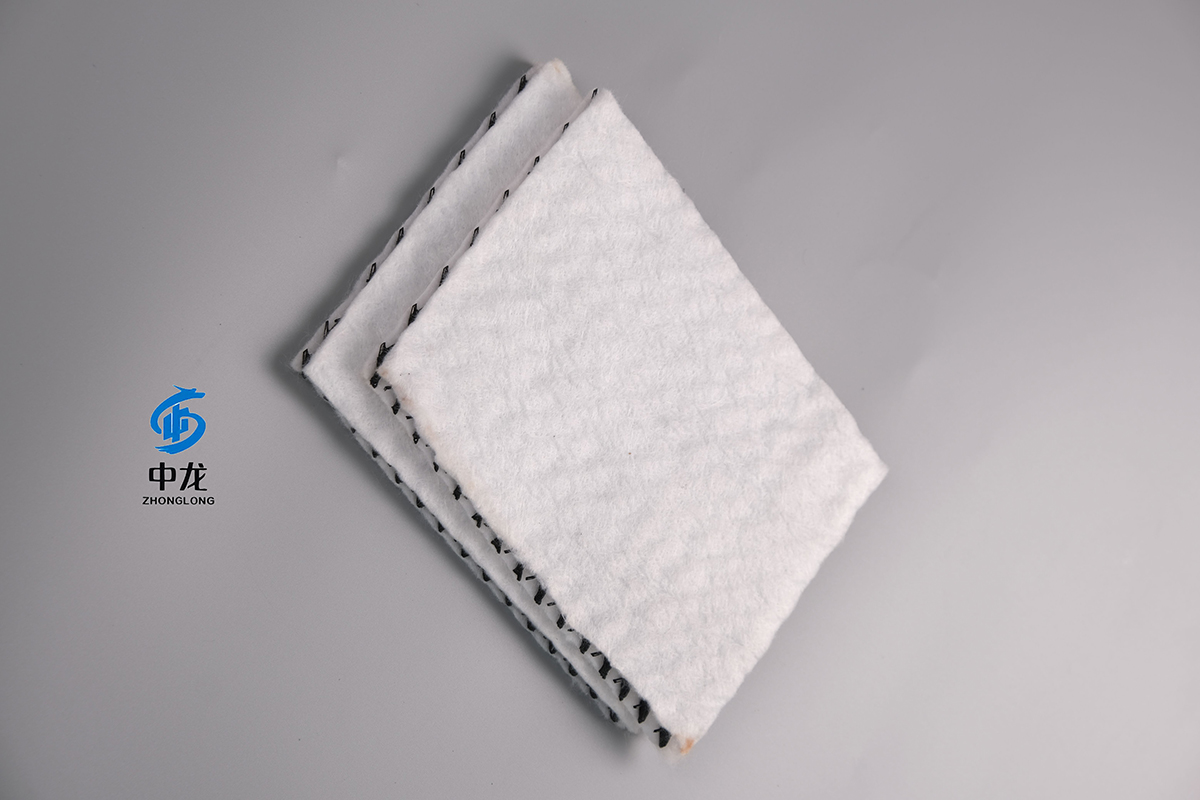

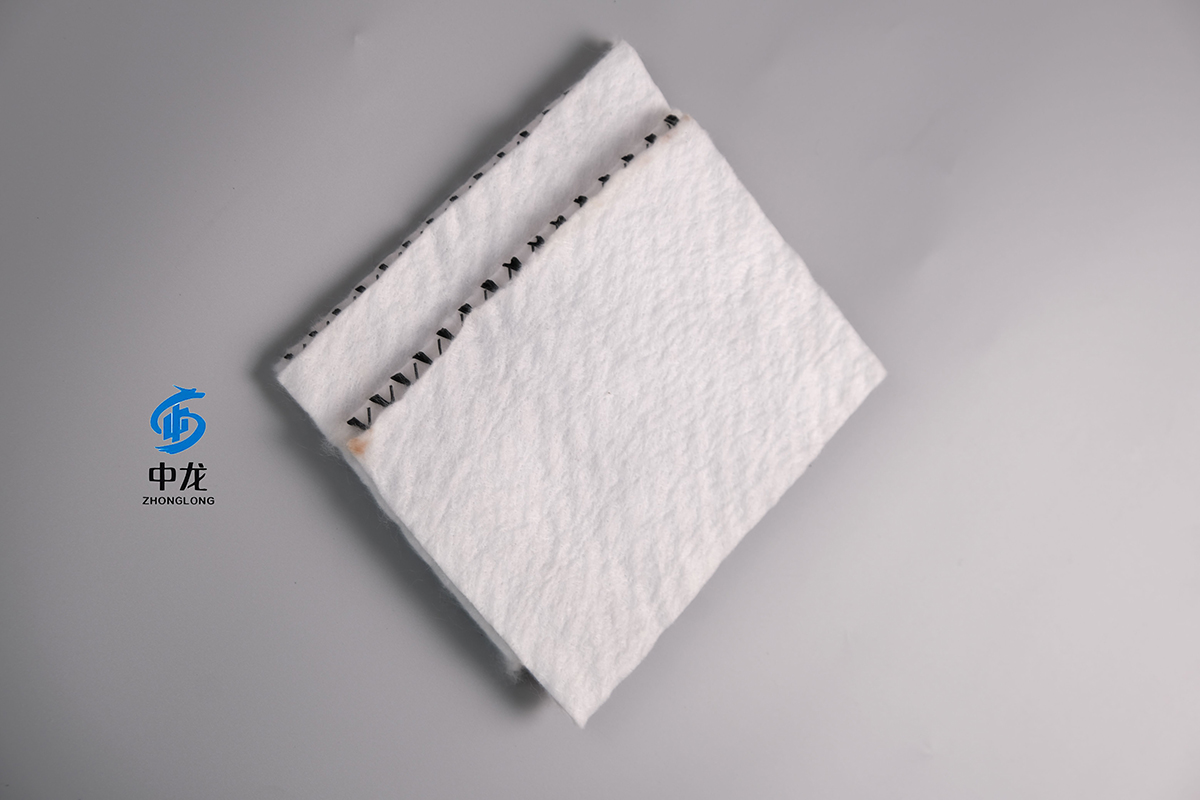

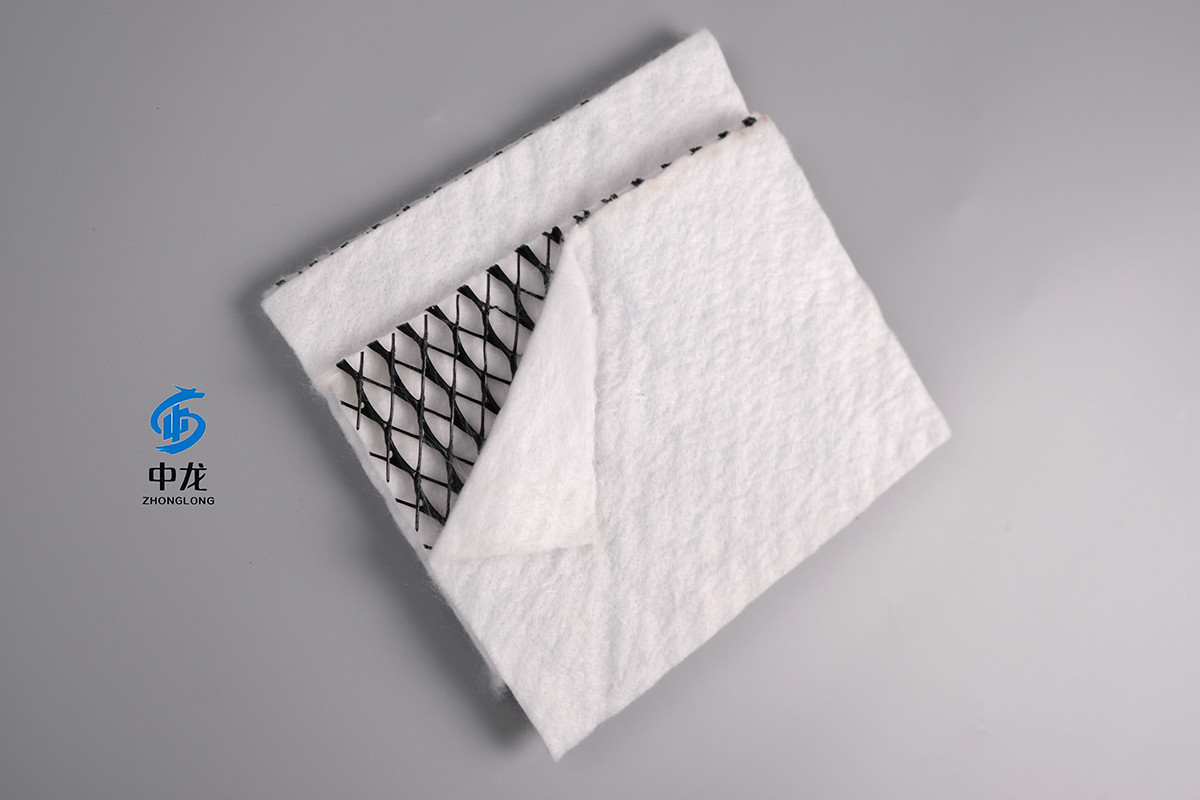

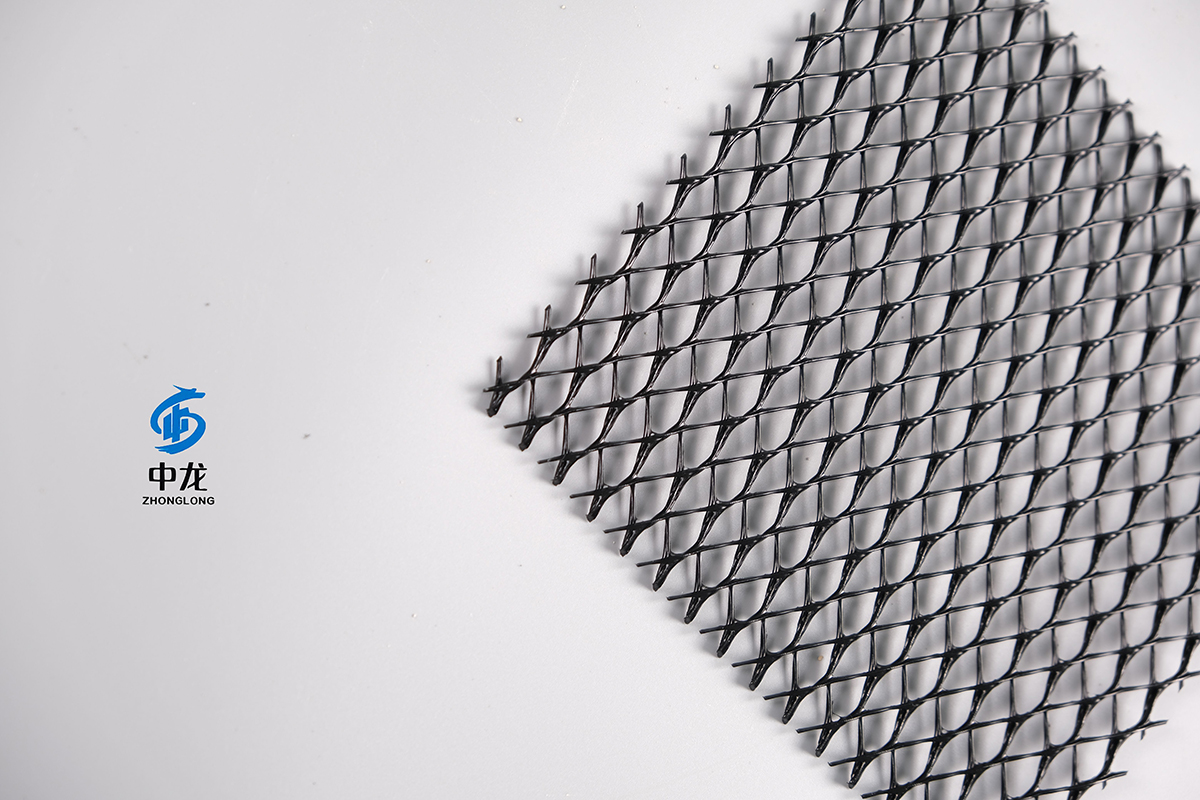

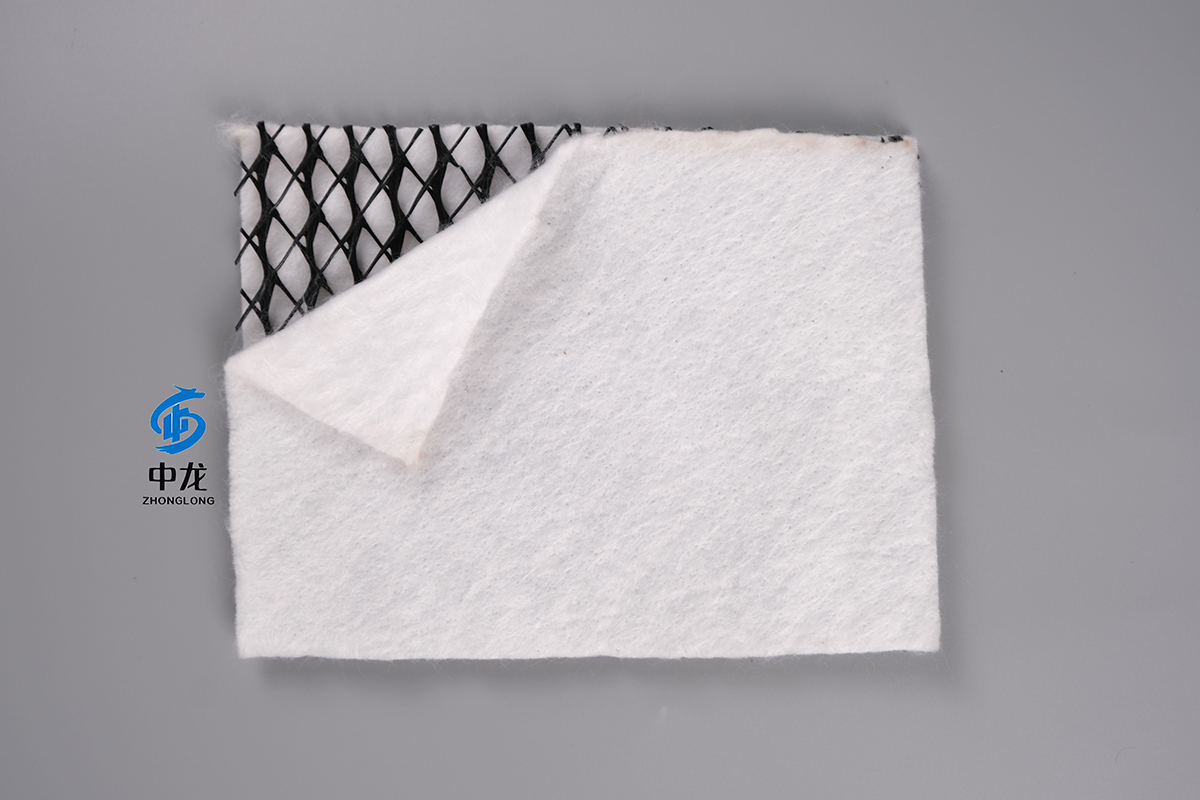

The 3d composite drainage net is made of high density polyethylene (HDPE) and extruded ribs by a special head. The three ribs are arranged at a certain distance and angle to form a 3D spatial structure with a drainage groove. The rib in the middle has greater rigidity, forming a rectangular drainage channel, and both sides are glued with needle-punched non-woven geotextiles. The three-layer ribs composed of drainage networks have higher tensile strength and compressive strength.

The drainage channel formed between the ribs of the three layers is not easy to deform under high load which can prevent the geotextile from embedding into the geonet core and ensures smooth drainage. The three-dimensional geo-drainage network has high-strength and high-guide drainage types according to its use. Groundwater can quickly drain from roads. It also has a pore maintenance system that blocks capillary water under high loads. At the same time, it can also play a role in isolation and foundation reinforcement. Thickness 5/6/8mm, roll length 30/40/50 m, width 4/4.6/6 m,all can be customized

分类:
分享

相关产品



Parameter

Application
Landfill drainage, road subgrade drainage, railway drainage, tunnel construction drainage, underground structure drainage, retaining wall back drainage, garden and sports field drainage.

Characteristic
Strong drainage (equivalent to one meter thick gravel drainage), tensile strength can withstand high pressure load for a long time (more than 3000Kpa compression load), reduce the probability of geotextiles embedded to maintain long-term stability of water conductivity, corrosion resistance, acid and alkali resistance, long life, low cost, convenient construction.
